Digital Display Thickness Gauge
Digital Display Thickness Gauge
Regular price
$33.98 USD
Regular price
Sale price
$33.98 USD
Unit price
per
Couldn't load pickup availability
Quickly and accurately gauge various thickness!
Applications: Thickness gauge used to accurately measuring soft materials such as a variety of paper, film, leather, sponges and wires.

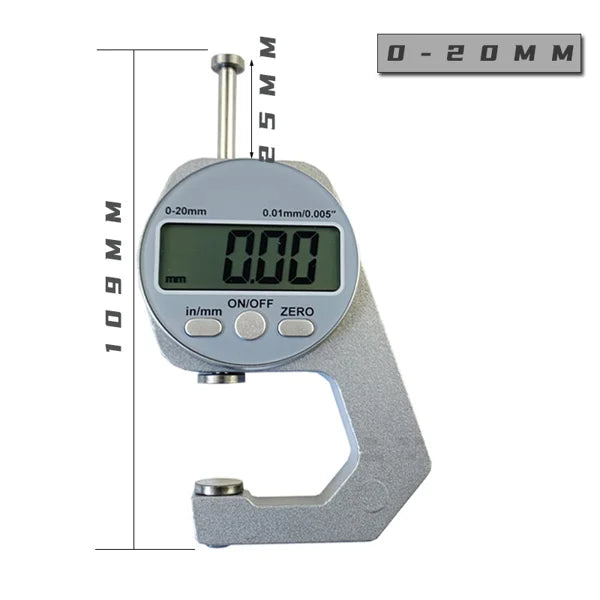

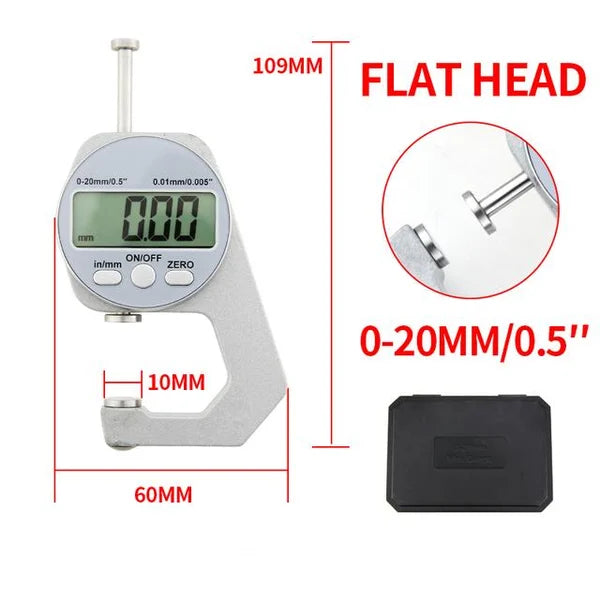

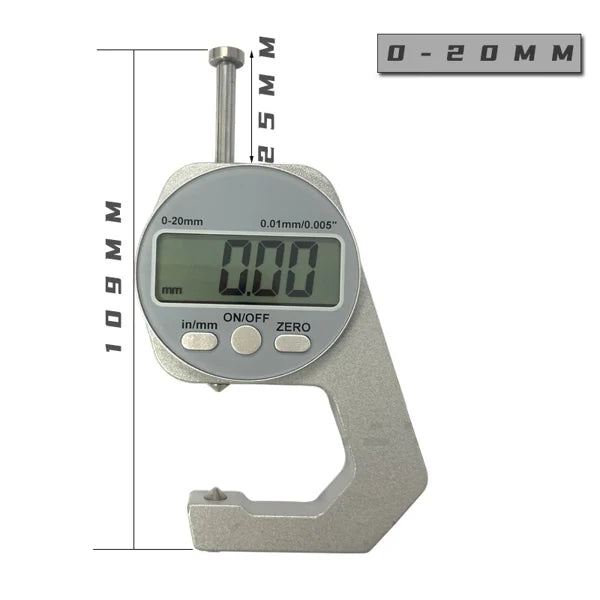

Measuring Range: Measuring Range from 0 ~ 20 mm, High Resolution up to 0.01 mm (0.0005 inch).
Inch and Metric Conversion: Switchable between mm and inch, suitable for all kinds of measurement.
LCD Display: Large LCD display, easy to read.
Portable: Small size, easy to carry and use.

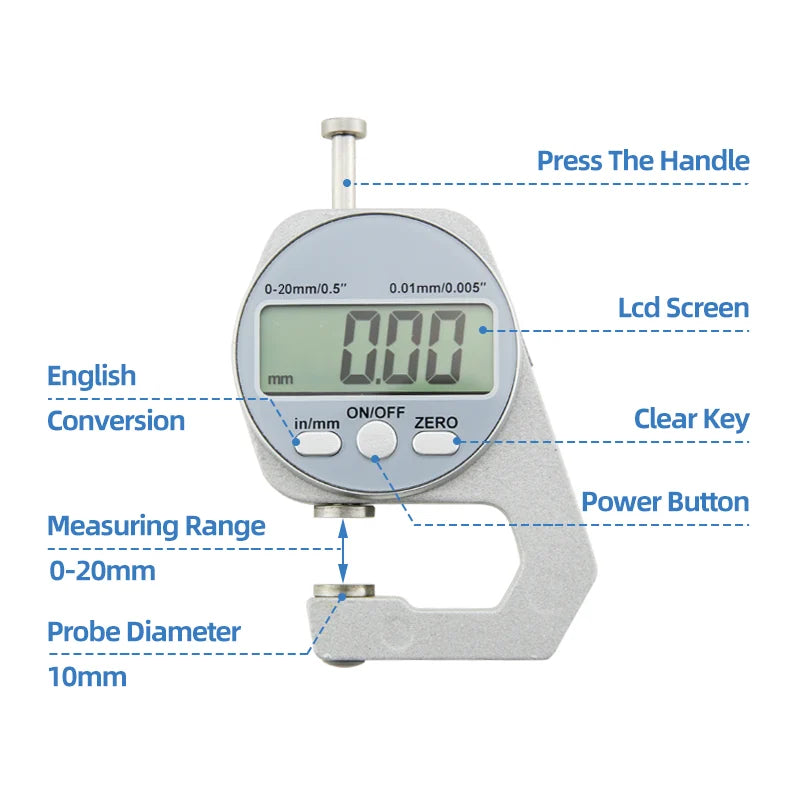

Usage Direction:
1.Wipe clean the upper and lower probe
2.Press the key , turn on the power , check the display is normal
3.Down according to the measure button closes the upper and lower measuring head, press zero reset, then, at this point can be measured

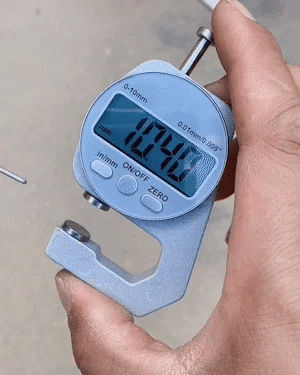

4.The workpiece to be measured in square measuring head and down according to the measurement button, make the measuring head compression on the workpiece, and reading
5.Press the mm/in to change the display.
2.Press the key , turn on the power , check the display is normal
3.Down according to the measure button closes the upper and lower measuring head, press zero reset, then, at this point can be measured
4.The workpiece to be measured in square measuring head and down according to the measurement button, make the measuring head compression on the workpiece, and reading
5.Press the mm/in to change the display.
Product Specifications:
Range: 20mm/15mm
Working temperature: 0-40℃
Storage and transportation temperature: -20-70℃
Relative humidity: ≤80%
Battery: 3V button battery CR2032 (built-in battery for delivery)

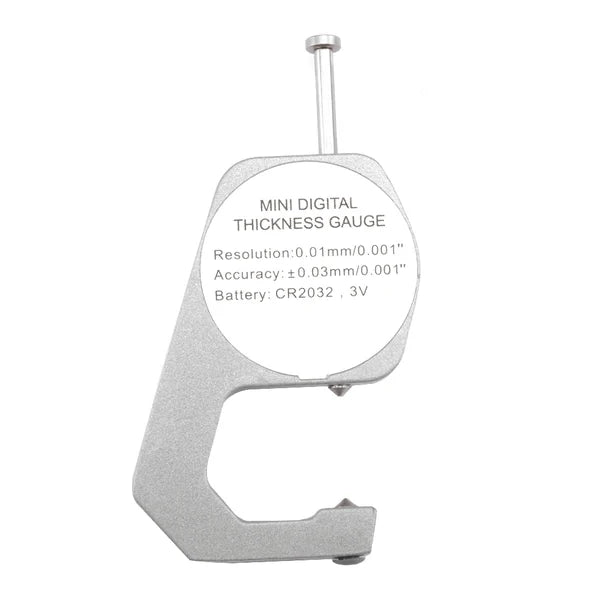

Resolution: 0.01mm/0.001
Accuracy: ±0.03mm/0.001
Working temperature: 0-40℃
Storage and transportation temperature: -20-70℃
Relative humidity: ≤80%
Battery: 3V button battery CR2032 (built-in battery for delivery)
Resolution: 0.01mm/0.001
Accuracy: ±0.03mm/0.001
Package:

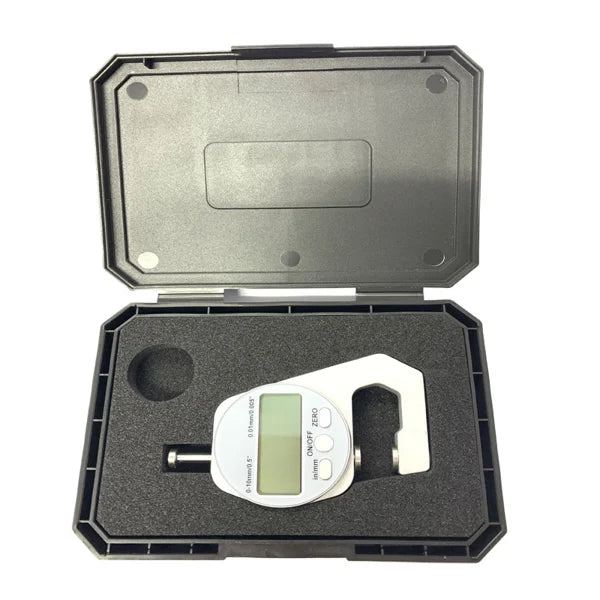

1 pc * Digital thickness gauge
